RTX450 Ride-on Tractor
- Customizable for your job
General
| Manufacturer | Vermeer |
| Model | RTX450 Ride-on Tractor |
| Category | Landscape, Renewable Energy, Rental, Utility Installation |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Weight (basic tractor, rubber tires) | 4507lbs (2044.3kg) |
| Weight (basic tractor, tracks) | 6205lbs (2814.5kg) |
| Length (basic tractor, rubber tires) | 109in (276.9cm) |
| Length (basic tractor, tracks) | 114in (289.6cm) |
| Width (basic tractor, rubber tires) | 60in (152.4cm) |
| Width (basic tractor, tracks) | 64in (162.6cm) |
| Height (basic tractor, rubber tires) | 88.7in (225.3cm) |
| Height (basic tractor, rubber tires, option two) | 90.3in (229.4cm) |
| Height (basic tractor, tracks) | 92.6in (235.2cm) |
| Wheel Base (Centerline of Axles) | 48in (121.9cm) |
| Tread Width with Rubber Tires (Centerline to Centerline) | 48.8in (124cm) |
| Tread Width with Rubber Tires Option Two (Centerline to Centerline) | 50in (127cm) |
| Ground Clearance (rubber tires) | 7.4in (18.8cm) |
| Ground Clearance (rubber tires, option two) | 9in (22.9cm) |
| Ground Clearance (tracks) | 9.9in (25cm) |
Engine - Option one
| Make and Model | Deutz 2.9L D Tier4F |
| Gross Horsepower (Maximum) | 49hp (36.5kw) |
| Maximum Torque | 108ft-lb (146.4Nm) |
| Cooling Medium | Oil/Coolant fluid |
| Fuel Type | Ultra-low sulfur diesel |
| Emissions rating | Tier 4 Final/Tier 4i (EU Stage IIIB) |
Ground Drive - Rubber Tire
| Maximum forward transport speed (high) | 3.5mph (5.6km/h) |
| Maximum reverse transport speed (high) | 3.5mph (5.6km/h) |
| Tire size | 26" (66 cm) |
Ground Drive - Rubber Tire Option Two
| Maximum forward transport speed (high) | 3.8mph (6.1km/h) |
| Maximum reverse transport speed (high) | 3.8mph (6.1km/h) |
| Tire size | 29" (73.7 cm) |

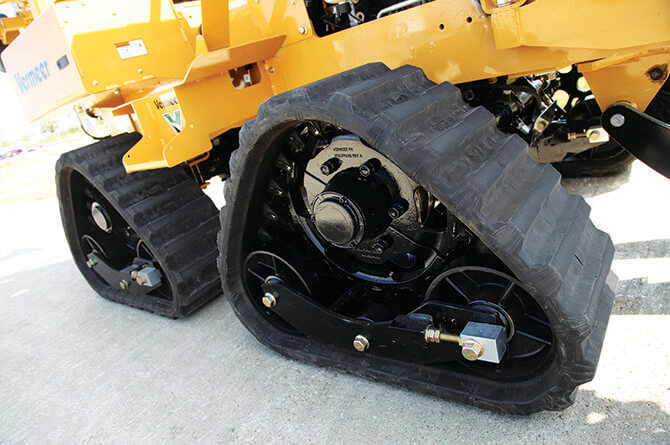

Ground Drive - Tracks
| Maximum forward transport speed (high) | 2.9mph (4.7km/h) |
| Maximum reverse transport speed (high) | 2.9mph (4.7km/h) |
Axle Options
| Front Axle Type | Steerable and oscillating 68/80 series planetary axles |
| Rear Axle Type | Rigid and steerable 68/80 series planetary axles |
| Axle load rating (static, per axle) | 14837lbs (6730kg) |
| Outside Turning Diameter (Rubber Tires, Front Steer Only) | 23.8ft (7.3m) |
| Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only) | 30.3ft (9.2m) |
| Outside turning diameter (tracks, front steer only) | 28.5ft |
| Outside Turning Diameter (Rubber Tires, Front and Rear Steer) | 12.9ft (3.9m) |
| Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer) | 16.5ft (5m) |
| Outside turning diameter (tracks, front and rear steer) | 16.7ft |
| Service Brake Type | Hydraulic |
| Parking Brake Type | Mechanical hand break |
Hydraulic System
| Auxiliary pump capacity | 11.7gpm (44.3L/min) |
| Auxiliary pump relief | 2500psi (172.4bar) |
| Attachment pump capacity | 30.1gpm (113.9L/min) |
| Attachment pump relief | 3450psi (237.9bar) |
| Ground drive pump capacity | 30.1gpm (113.9L/min) |
| Ground drive pump relief | 5080psi (350.3bar) |
Capacities
| Fuel Tank | 17.6gal (66.6L) |
| Hydraulic Tank | 13gal (49.2L) |
| Hydraulic System | 14.8gal (56L) |
| Coolant | 1.7gal (6.4L) |
