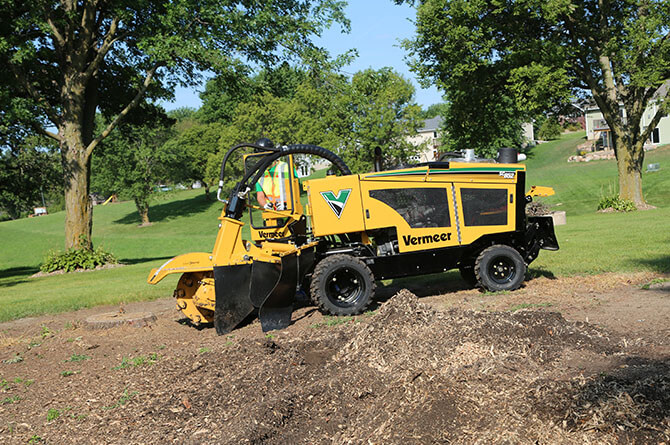

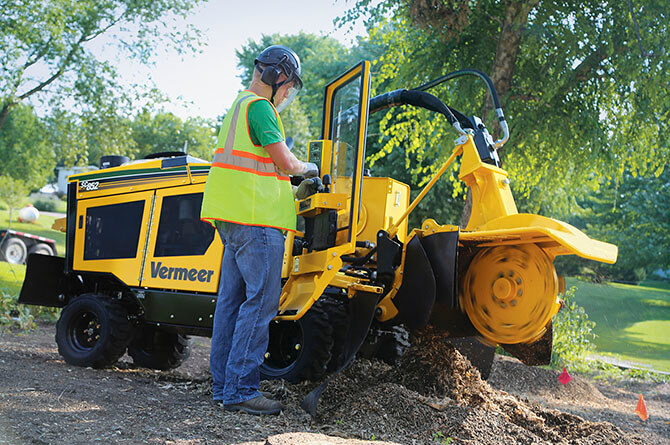

SC852 Stump Cutter
- Maximized cutting dimensions
- Feature rich for stump grinding professionals
- Designed to tackle tough jobs, day after day
General
| Manufacturer | Vermeer |
| Model | SC852 Stump Cutter |
| Category | Landscape, Rental, Tree Care |
| Price | Request a Quote |
| Year | 2024 |
Engine - Option one
| Oil Volume with Filter | 6.8qt (6.4L) |
| Oil Filter | Spin on |
| Make and Model | Deutz TD2.9L Tier Four Final |
| Maximum Angle of Continuous Operation | 20deg |
| Fan | Remote variable speed suction |
| Coolant Capacity (Engine and Radiator) | 3.9gal (14.8L) |
| Clutch Type | Hydrostatic Transmission |
| Gross Horsepower (Maximum) | 74hp (55.2kw) |
| Cooling Medium | Water / anti-freeze |
| Max Fuel Consumption | 3.9gph (14.8lph) |
| Fuel Tank Capacity | 13.5gal (51.1L) |
| Torque (Max) | 192ft-lb (260.3Nm) |
| Alternator | 95 Amp |
| Recommended Oil | 15W40 |
| Air Cleaner | Two-stage dry type with maintenance-free precleaner, restriction indicator, evacuator valve and safety element |
| Number of Cylinders | 4 |
| Fuel Type | Diesel |
Hydraulic System
| Filtration Method | Suction strainers and 3 micron return filter |
| Recommended Oil Type | Vermeer HyPower 68 |
| Pump Flow at Maximum RPM | 15.8gpm (59.8L/min) |
| System Type | 2 closed loops and 2 open loop |
| Oil Cooler | Standard |
| Directional Control | Electric over hydraulic |
| Tank capacity | 18.4gal (69.7L) |
| System relief pressure | 3000psi (206.8bar) |
Chassis
| Frame Description | Swing out control station with 3 available positions plus auxiliary control station |
| Brake Type | Spring applied, hydraulic release at planetary drives |
| Tires - Option One | Front: 20x8.00-10 |
| Wheels - Standard | Rear: 14 inch x 6 inch rim |
| Tires - Standard | Rear: Duals, 23x8.5-14 |
| Axle/Suspension | Rigid at dual drive wheels; oscillating front steerable axle |
| Steerable Axle Type | Hydraulic, oscillating |
| Wheels - Option One | Front: 10 inch x 6 inch rim |
| Control Station Description | Abrasion resistant coated polycarbonate, 3/16 inch thick |
| Operator Vision Shield Description | None |
Electrical System
| Radio Remote Control | Functions include: propel forward/reverse; boom up/down, boom left/right, steering left/right, blade up/down (optional), AutoSweep settings, travel speed high/low, differential lock, engine throttle |
| Switches | Cutterwheel drive engagement; AutoSweep adjustment, differential lock, Control panel selector (swingout or auxiliary), two-speed ground drive, blade, steering, boom controls and creep switches plus propel system joystick. |
| Battery | 950 CCA |
| Standard Gauges | Hour meter, fuel gauge, tachometer |
| System Voltage | 12V |
| Controller | Vermeer ACS |
| Shutdown System | High coolant or hyd oil temp, low oil pressure |
| Warning Lights | Low oil pressure and high engine temperature |
General Dimensions and Weights
| Weight - Engine Option One | 4460lbs (2023kg) |
| Sound Power | 110 dB(A) |
| Height | 80in (203.2cm) |
| Width | 35in (88.9cm) |
| Length | 147in (373.4cm) |
| Overall Width Transport (without duals) | 35in (88.9cm) |
| Overall Width Transport (with duals) | 56in (142.2cm) |
Cutterwheel Drive Components
| Lower Gearbox | 90 Degree |
| Oil Type - Lower Gearbox | Syn 75W90 |
| Oil Capacity - Lower Gearbox | 2.7qt (2.5L) |
| Driveshaft | Standard |
| Driveshaft - U Joints | 2 Standard w/ double lip seals |
Cutterwheel System
| Cutterwheel Speed | 930rpm |
| Cutterwheel Thickness | 1.1in (2.9cm) |
| Number of Indexes | 2 per tooth |
| Number of Teeth | 26 |
| Tooth Description | Yellow Jacket Cutting System |
| Number of Pockets | 26 |
| Cutterwheel Guard | Standard |
| Reversible Pockets/Teeth | Yes - Standard |
| Cutterwheel Straight Line Dimension | 72in (182.9cm) |
| Cutterwheel Cut Above Ground | 31in (78.7cm) |
| Cutterwheel Cut Below Ground | 25in (63.5cm) |
| Chip Containment | 28.2cu ft (.8cu m) |
| Cutterwheel Diameter | 23in (58.4cm) |
Remote Control Option
| Radio Remote Control | Optional |
| Remote Display | LED |
| Remote Range | 300' |
| Remote Functions | Engine start/stop, throttle, cutter wheel engage, swing, raise/lower |
Other Options
| Special Paint | Optional |
| Extended Warranty | 2 year/2000 hour or 3 year/3000 hour |
| Preventive Maintenance | Optional |
Option One
| Chip Blade Dimension | Standard feature, 34 inches wide, 13.75 inches tall |
| Blade Travel Above Ground | 14in (35.6cm) |
Ground Drive
| High Speed Travel | 130ft/min (39.6m/min) |
| Low Speed Travel | 60ft/min (18.3m/min) |
